Q235 Low Carbon Steel Metal Grating Bar For Power Plant Platform

Working Platform Steel Grating Steel Grating For Power Plant Platform

Brief introduction of steel grating for power plant platform

The steel grating of power plant can also be called platform steel grating, "hot galvanized steel grating platform". It is a widely used steel grating product in recent years. This kind of steel grating is widely used in various fields of industry and has strong resistance to surface impact, especially the steel grating with 50mm cross bar spacing has strong resistance to lateral impact. In addition to being used in power plants, it is also often used in various platforms of factories, workshops, mining and ports. The use effect is beautiful and easy to install. It is a new building product.

Parameter table of grid plate for power plant

Performance of steel grating for power plant

The power plant platform steel grating is a new building product with ventilation, light transmission, anti-skid, strong bearing capacity, beautiful and durable, easy to clean and install. The skirting plate (retaining plate), checkered plate, guard plate and other accessories can be welded around. Flat steel with different specifications can be used for edging, or angle steel, channel steel, square tube and other edging; Handles and hinges can also be installed on steel gratings that need to be moved or opened frequently.

Where is the steel grating used in the power plant

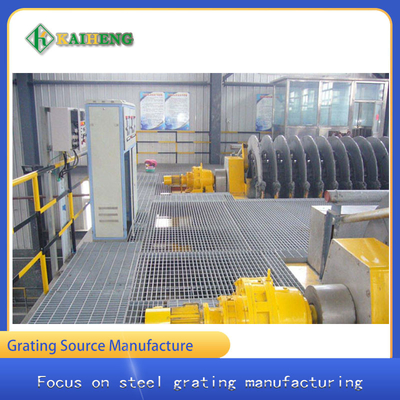

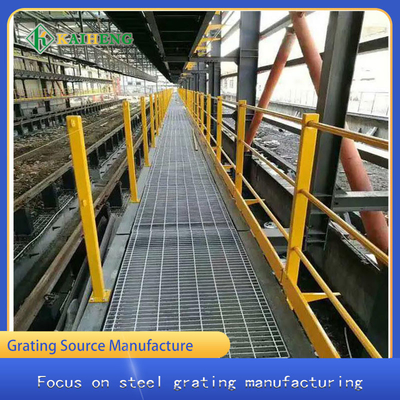

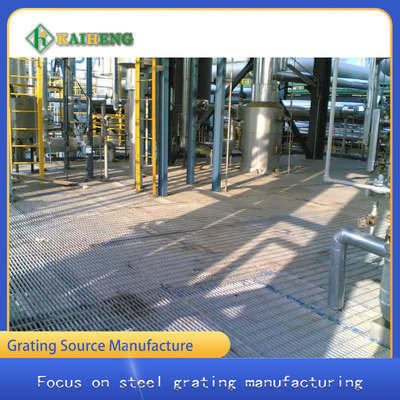

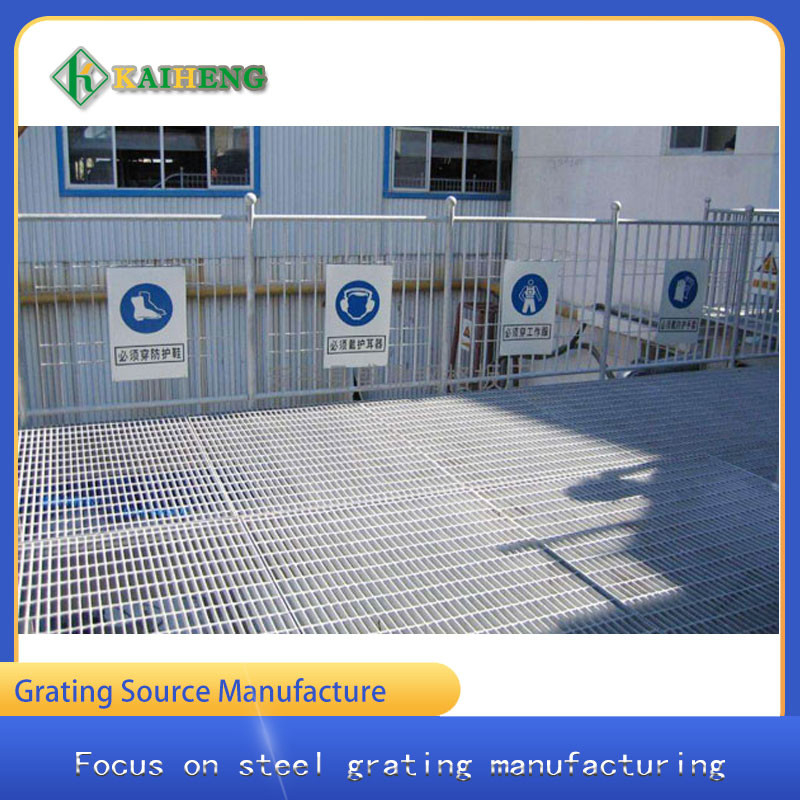

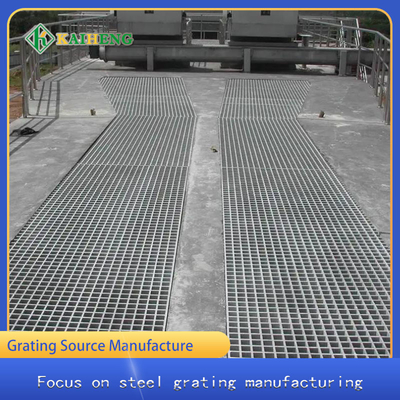

The steel grating used in the power plant is mainly the working platform, or the bearing equipment, and the cover plate of the drainage ditch outside the power plant

Manufacturing materials of steel grating for power plant

1. Flat steel and cross bar are made of Q235 of GB / T700, and can also be made of other materials according to the agreement between the supplier and the buyer.
2. Flat steel adopts hot-rolled flat steel or hot-rolled or cold-rolled steel strip after longitudinal shear.
3. The allowable deviation of flat steel size shall comply with table I Yb / T4001 1-2007.
4. The tooth flat steel adopts hot-rolled flat steel or hot-rolled or cold-rolled steel strip after longitudinal shear and punching. The tooth profile size shall not be less than 5 teeth per 100mm.
5. Section size and section moment of inertia of I-shaped flat steel.
