Product Details:
|
Material: | Steel Q235 Or As Your Required | Color: | Silver |
---|---|---|---|
Surface: | Hot Galvanized | Application: | Wet And Greasy Place Or Oil Production Platform |
High Light: | Serrated Steel Metal Grating,19w4 Steel Metal Grating,19w4 steel grating |

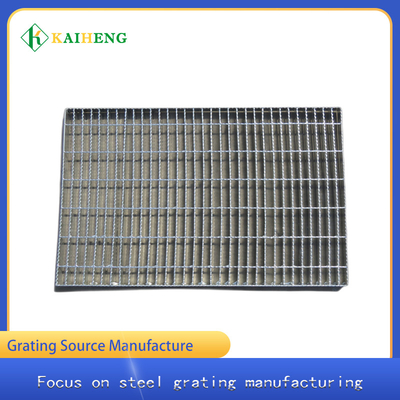

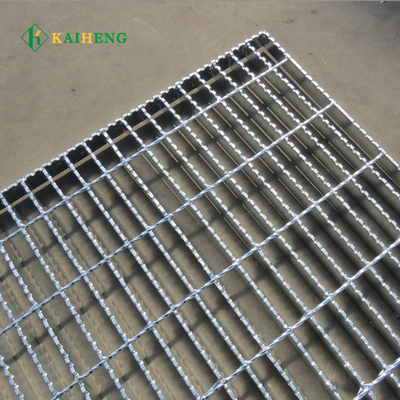

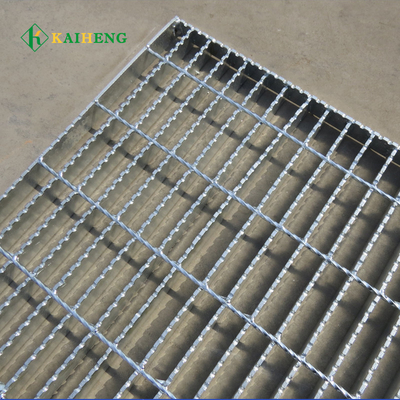

Toothed Steel Grating Plate Silvery White Anti Skid Grating Plate
As the name suggests, toothed steel grating is made of toothed flat steel. In addition to the characteristics and uses of ordinary steel grating, it also has strong anti-skid ability. It is especially suitable for wet and greasy places, offshore oil production platforms, etc. Serrated steel grating adopts hot-dip galvanizing surface treatment, which has strong anti rust force. This product can be used as the hinge connection between the ditch cover and the frame, which is anti-theft, safe and easy to open.
The serrated steel grating adopts high-strength carbon steel, which makes the steel grating have high strength: the strength and toughness are much higher than that of cast iron. It can be used in wharf, airport and other long-span and heavy load environments. This product has large mesh and the best drainage performance: the water leakage area is 83.3%, which is more than twice that of cast iron.
Beautiful appearance: simple lines, silver appearance, modern ideas, saving materials and saving investment: the price of large span and heavy load is lower than that of cast iron; It can also save the cost of replacing the cast iron cover due to theft or crushing.
Ordinary flat steel: the common models are generally 253 255 303 305 323 325 403 404 405 503 505 605 705 and other specifications. We mainly use longitudinal shear flat steel and steel plate cutting. Toothed flat steel: the model is the same as that of ordinary flat steel. The difference is that there are uneven tooth marks on one side of the flat steel, which is mainly used for anti-skid.
Twist steel: also called twisting square steel, generally has 5x5 6x6 8x8 square steel, twisted steel bar.
Series One | Series Two | Series Three | ||
203/30/100 | 203/30/50 | 203/40/100 | 203/40/50 | |
253/30/100 | 253/30/50 | 253/40/100 | 253/40/50 | |
254/30/100 | 254/30/50 | 254/40/100 | 254/40/50 | 254/50/60 |
255/30/100 | 255/30/50 | 255/40/100 | 255/40/50 | 255/50/60 |
303/30/100 | 303/30/50 | 303/40/100 | 303/40/50 | 303/50/60 |
353/30/100 | 353/30/50 | 353/40/100 | 353/40/50 | 353/50/60 |
304/30/100 | 304/30/50 | 304/40/100 | 304/40/50 | 304/50/60 |
354/30/100 | 354/30/50 | 354/40/100 | 354/40/50 | 354/50/60 |
305/30/100 | 305/30/50 | 305/40/100 | 305/40/50 | 305/50/60 |
355/30/100 | 355/30/50 | 355/40/100 | 355/40/50 | 355/50/60 |
403/30/100 | 403/30/50 | 403/40/100 | 403/40/50 | 403/50/60 |
453/30/100 | 453/30/50 | 453/40/100 | 453/40/50 | 453/50/60 |
404/30/100 | 404/30/50 | 404/40/100 | 404/40/50 | 404/50/60 |
454/30/100 | 454/30/50 | 454/40/100 | 454/40/50 | 454/50/60 |
405/30/100 | 405/30/50 | 405/40/100 | 405/40/50 | 405/50/60 |
455/30/100 | 455/30/50 | 455/40/100 | 455/40/50 | 455/50/60 |
503/30/100 | 503/30/50 | 503/40/100 | 503/40/50 | 503/50/60 |
504/30/100 | 504/30/50 | 504/40/100 | 504/40/50 | 504/50/60 |
554/30/100 | 554/30/50 | 554/40/100 | 554/40/100 | 554/50/60 |
505/30/100 | 505/30/50 | 505/40/100 | 505/40/50 | 505/50/60 |
555/30/100 | 555/30/50 | 555/40/100 | 555/40/50 |
555/50/60 |
The toothed steel grating is welded by flat steel with serration on one side, which has strong anti-skid ability. It is especially suitable for wet and greasy places and oil production platforms. However, its price is high. Please consider the cost when purchasing. The serrated steel grating adopts hot-dip galvanized surface treatment, which has strong anti rust power and is free of maintenance and replacement for 30 years.
