Product Details:
|
| Material: | Steel Q235 As Required | Color: | Silver |
|---|---|---|---|
| Steel Plate: | Checkered Steel Plate 3mm-6mm | Surface: | Hot Galvanized |
| Application: | Platform Of Some Plants | Performances: | Good Bearing Capacity And Leak Proof |
| High Light: | Anti Slip Steel Metal Grating,checker Steel Metal Grating,checker steel plate Grating |
||
| orgin | anping hebei China |
| name | composite steel grating |
| specification | customized |
| steel plate | Checkered steel plate |
| steel plate thickness | 3mm 4mm 5mm 6mm |
| material | steel Q235 or as required |
| surface | hot galvanized |
| application | platform for plants |
| transport | shipping |

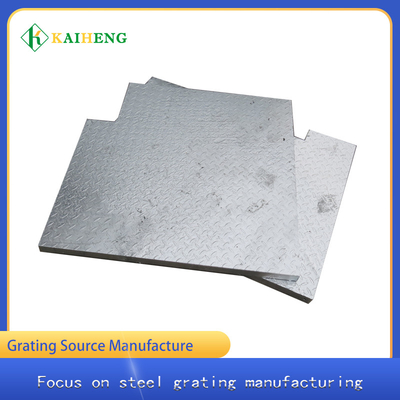

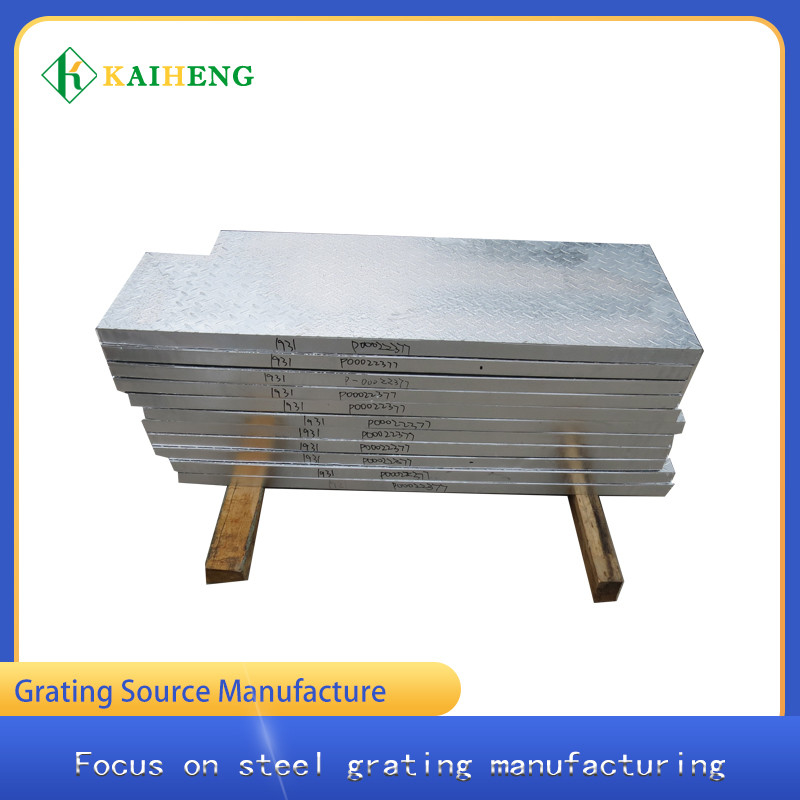

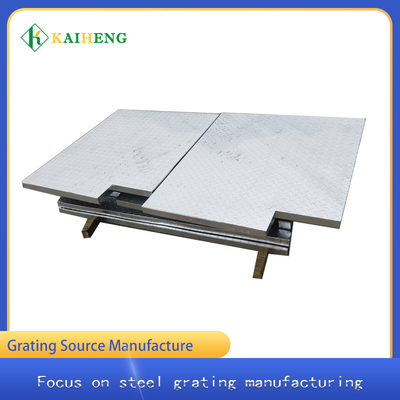

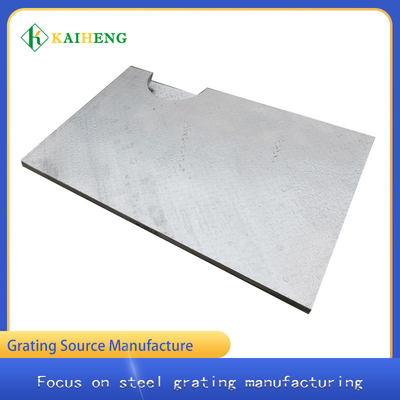

It is a product composed of steel grating with certain spanning capacity and checkered plate on sealing surface. It can be composed of any type of steel grating and checkered steel plates with different thickness. But the most commonly used steel grating is G323 / 40 / 100 as the bottom plate; Checkered steel plates are usually 3mm thick plates, and 4mm, 5mm or 6mm plates can also be used.
1: High strength, light structure
2: Strong corrosion resistance and durability
3: Beautiful appearance and bright surface
4: No dirt, rain, snow, ponding, self-cleaning and easy maintenance
5: Ventilation, daylighting, heat dissipation, anti-skid, good explosion-proof performance.
6: Convenient for installation and disassembly.
1. Directly weld the steel grating or step plate on the supporting steel structure, and brush the welding part with two coats of galvanized powder paint.
2. It is installed with a special installation clamp for multi grid steel grating, which does not damage the galvanized layer and is convenient for disassembly and assembly. Each set of mounting clamps includes an upper clamp, a lower clamp, an M8 round head bolt and a nut.
3. Stainless steel mounting clip or bolt connection and other fastening methods can be provided as required.
4. The installation clearance of steel grating is generally 100mm.
5. Pay attention to the firm and reliable installation during installation, and check frequently to prevent the installation clamp from loosening and falling off. Weld or add rubber pad near the vibrating steel grating.
