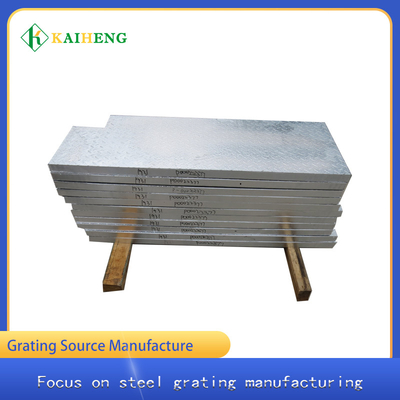

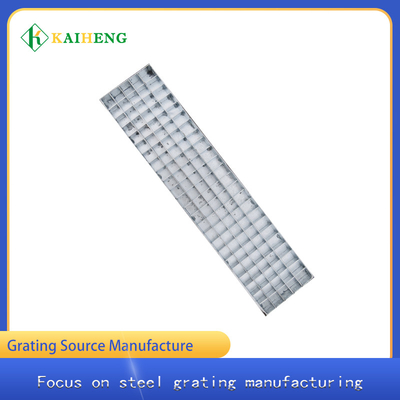

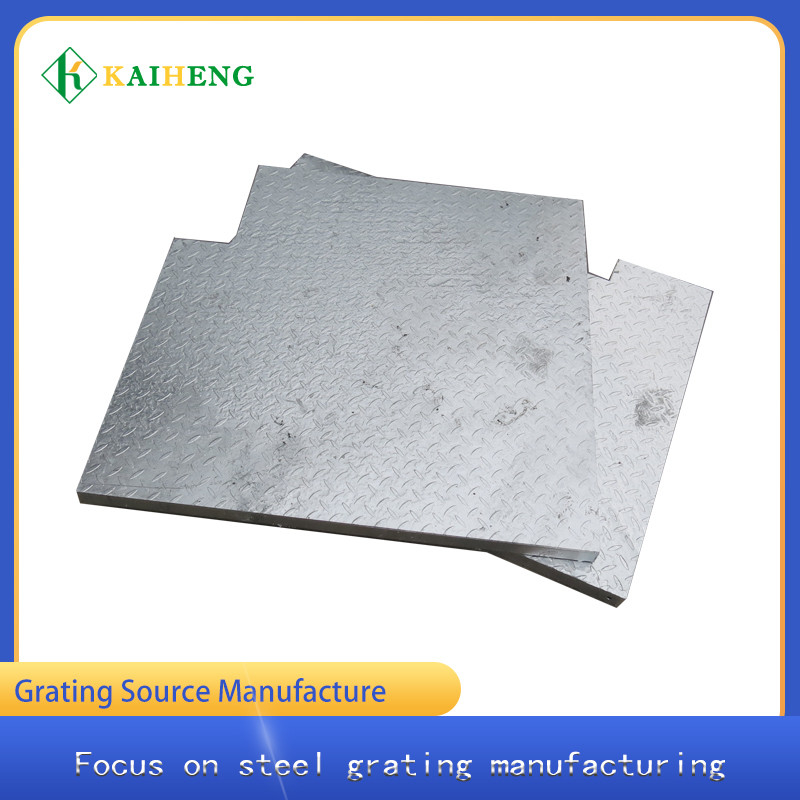

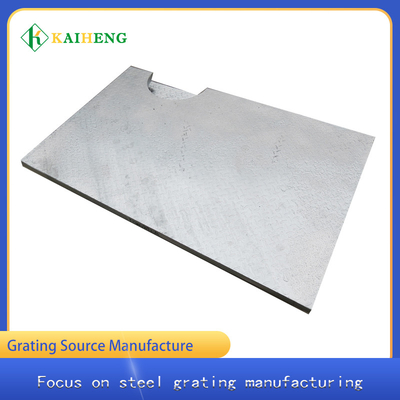

5mm 6mm Composite Galvanized Chequered Checker Metal Plate For Walkway

Composite Grid Plate Galvanized Grid Plate Composite Steel Grid Plate For Walkway Industrial Plant Grid Plate

composite steel grating Introduction

Composite steel grating plate is an extension of conventional grating plate. A 3-6mm checkered steel plate is welded on the steel grating plate formed by pressure welding of flat steel and cross bar, and then the composite steel grating plate is formed, and then galvanized to become the finished product of composite steel grating plate.

composite steel grating plate  Advantages

1: Bright surface   beautiful appearance
2: Strong corrosion resistance
3:  High strength, light structure
4: Ventilation, daylighting,anti-skid, good explosion-proof performance heat dissipation, .
5:  Easy maintenance,snow, ponding, No dirt, rain,  self-cleaning
6: Convenient for disassembly and installation .

Construction site installation method of composite steel grating plate
1. Directly weld the steel grating or step plate on the supporting steel structure, and brush the welding part with two coats of galvanized powder paint.
2.Stainless steel mounting clip or bolt connection and other fastening methods can be provided as required.
3. It is installed with a special installation clamp for multi grid steel grating, which does not damage the galvanized layer and is convenient for disassembly and assembly. Each set of mounting clamps includes an upper clamp, a lower clamp, an M8 round head bolt and a nut.
4. Pay attention to the firm and reliable installation during installation, and check frequently to prevent the installation clamp from loosening and falling off. Weld or add rubber pad near the vibrating steel grating.
5. The installation clearance of steel grating is generally 100mm.
