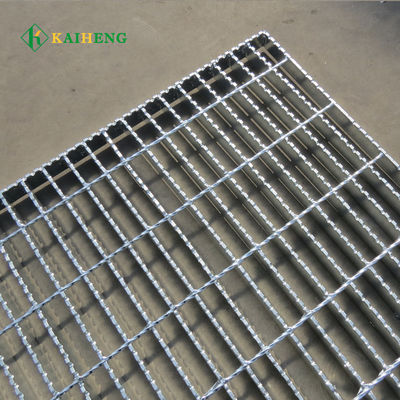

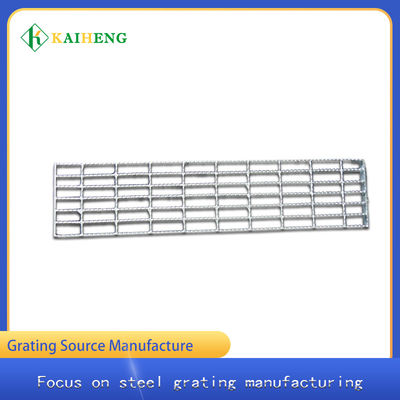

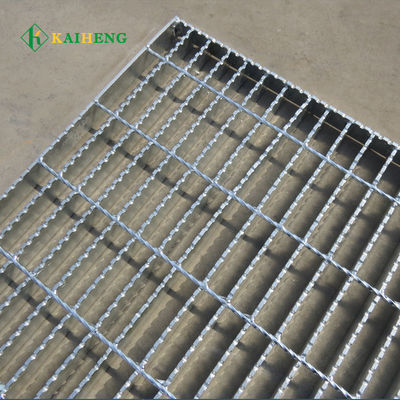

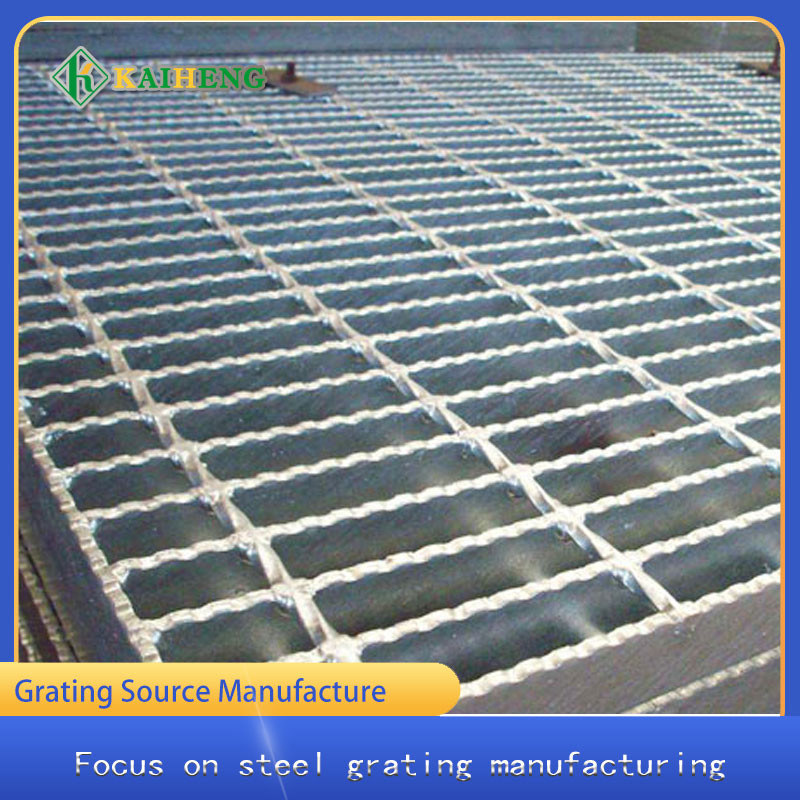

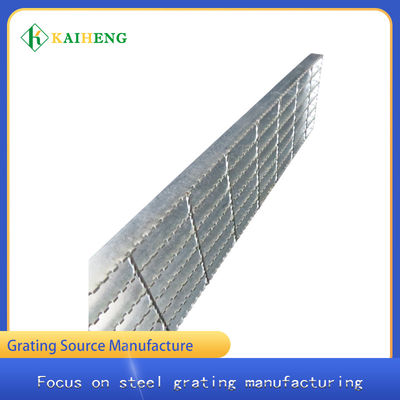

Silver White Antiskid Serrated Grating Ladder Metal Walkway Mesh

Antiskid Steel Grating Steel Ladder Antiskid Grating Silver White Tooth Shape

Basic parameters of anti-skid grid plate

Brief introduction of anti slip steel grating

The toothed steel grate is made of flat steel with unilateral wavy teeth as the bearing structure, welded with the cross bar (hemp steel) through the weft and weft to form a steel plate, so as to achieve semi-finished products with skid resistance, and then after the edge treatment is carried out, the surface rust is removed, and the galvanized anticorrosive process of the galvanizing factory is finished, forming the finished product of the tooth shaped steel grating.

Raw material composition of toothed steel grating:

Ordinary flat steel: the general material is Q235 Common models are generally 253 255 303 305 323 325 403 404 405 503 505 605 705 and other specifications. We mainly use longitudinal shear flat steel and steel plate cutting. Toothed flat steel: the model is the same as that of ordinary flat steel. The difference is that there are uneven tooth marks on one side of the flat steel. Mainly anti slip.

Type I flat steel: the flat steel is thick on both sides and thin in the middle.
Twist steel: also called twisting square steel, generally has 5x5 6x6 8x8 square steel, twisted steel bar.
Tooth shaped steel grating is introduced briefly above. Its advantages are conducive to anti-skid effect, so generally, everyone will choose tooth shaped steel grating for ditch cover.
Toothed steel grating is designed to avoid sliding of working platform. It is mostly used in wet, smooth and wet places, such as working platforms in refineries and oil exploitation.


What is the performance of toothed steel grating

Steel grating is rapidly applied in various fields of urban construction for its ventilation, anti-corrosion, load-bearing and other reasons. Therefore, steel grating has extended many kinds. The steel grating welded by serrated flat steel is called toothed steel grating. There are uneven tooth marks on one side. In addition to the advantages of ordinary steel grating, it also has many advantages. The main advantages are as follows:
1, Because one side of the steel grating is serrated, it has strong friction and strong balance when people stand on it. Therefore, it is suitable for wet and greasy places, such as water treatment plants, chemical plants, offshore platforms, etc;

2, Steel grating adopts high-strength carbon steel, which has high strength, and its strength and toughness are much higher than cast iron. It can be used in wharf, airport and other long-span and heavy load environment, with large mesh and the best drainage performance, and the water leakage area is 83.3%, which is more than twice that of cast iron; Beautiful appearance: simple lines, silver appearance, modern ideas, saving materials and saving investment: the price of large span and heavy load is lower than that of cast iron; It can also save the cost of replacing the cast iron cover due to theft or crushing.
4, The toothed steel grating adopts hot-dip galvanizing for surface treatment, which has strong anti-corrosion ability, which reduces the trouble of later maintenance. This product can be used as a ditch cover, which has the advantages of anti-theft, safety, convenient opening and so on.

Application scenario of anti slip steel grating

Tooth shaped steel grating is introduced briefly above. Its advantages are conducive to anti-skid effect, so generally, everyone will choose tooth shaped steel grating for ditch cover.

Toothed steel grating is designed to avoid sliding of working platform. It is mostly used in wet, smooth and wet places, such as working platforms in refineries and oil exploitation.

this is our factory photo,we are a factory that focus on maiking steel grating plate. if you need order grid,you can contact with us .
