Product Details:
|
| Name: | T1 Stair Tread | Color: | Silver White |
|---|---|---|---|
| Material: | Carbon Steel Q235，zinc | Surface: | Hot Dip Galvanizing |
| Bearing Bar Pitch: | 60mm | Cross Bar Pitch: | 10cm |
| Section Size Of Flat Steel（mm）: | 25*5,32*5,40*5 | Maximum Length（mm）: | 550,850,1350 |
| Width（mm）: | 185，245，305 | Performance: | Corrosion Resistance And Load Bearing |
| High Light: | Welded bar grating stair treads,60mm bar grating stair treads,Welded metal grate stairs |
||

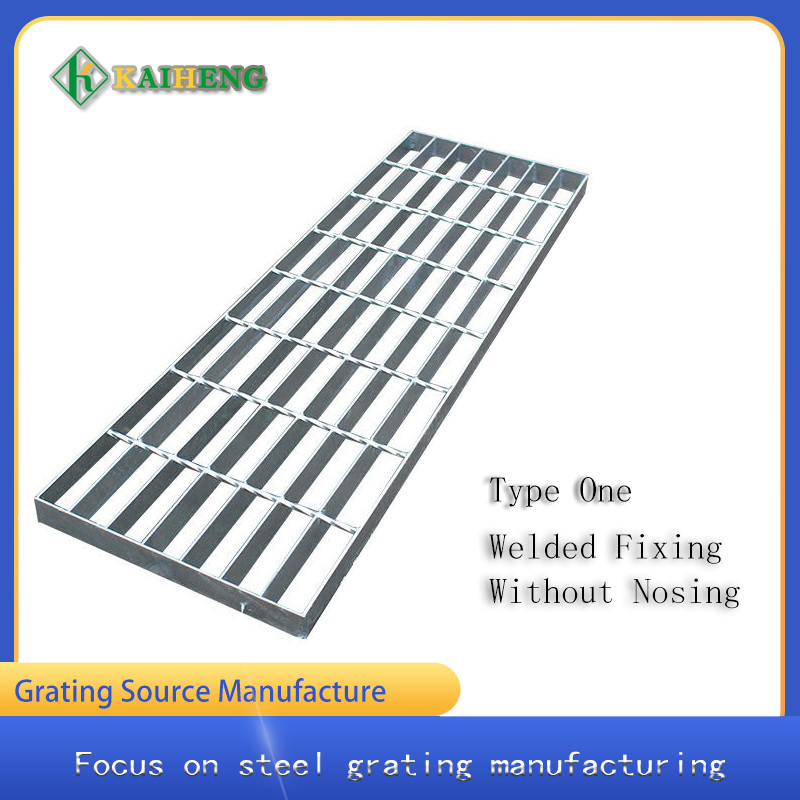

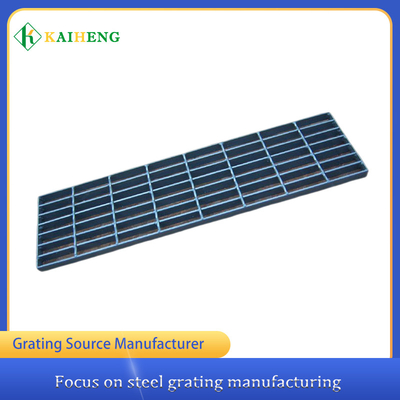

This is a model with large spacing of flat steel, with a spacing of 60mm. The processing process is manual welding. This model is welded, installed and fixed without front guard plate. It is welded with bearing flat steel and cross bar. The surface is hot-dip galvanized to adapt to weak acid-base and oxidation and increase the service life
| name | T1 steel ladder step grid with 60mm bearing bar pitch |
| color | silver white |
| material | steel q235 |
| surface | hot dip galvanizing |
| bearing bar pitch(mm) | 60 |
| cross bar pitch(mm) | 10 |
| bearing bar(mm*mm) | 25*5,32*5,40*5 |
| width(mm) | 185,245,305 |
| length(mm) | 550,850,1350 |
| standard | iso9001 |

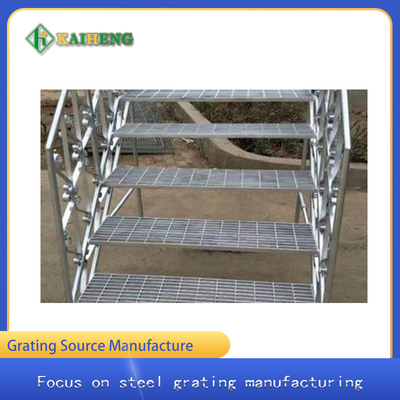

This T1 type steel ladder step plate is welded, which is suitable for the steel ladder that will not be disassembled forever. It is easy to install. The grid mesh has good ventilation performance, daylighting performance and light transmittance compared with 30mm and 40mm. In addition, it also has anti-skid effect when people step on the grid hole. The steel has the characteristics of high strength, durable and light compared with the concrete structure. The grid hole design is also very convenient for maintenance and does not accumulate dirt, The surface galvanizing process of steel ladder step plate makes it show excellent corrosion resistance.
Treads are widely used in power plants, water plants and other factories, as well as platforms and walkways in the fields of municipal engineering and environmental sanitation engineering, as well as ground platforms in large places such as cinemas, visiting platforms and parking lots.
