Product Details:
|
| Name: | T4 Stair Tread | Color: | Silver White |
|---|---|---|---|
| Material: | Carbon Steel Q235，zinc | Surface: | Hot Dip Galvanizing |
| Bearing Bar Pitch: | 60mm | Width（mm）: | 115,215,275 |
| Cross Bar Pitch: | 10cm | Section Size Of Flat Steel（mm）: | 25*5,32*5,40*5 |
| Maximum Length（mm）: | 550,850,1350 | Performance: | Corrosion Resistance And Load Bearing |
| High Light: | Checkered metal grate stair treads,Bolted metal grate stair treads,60mm Pitch steel stair treads |
||

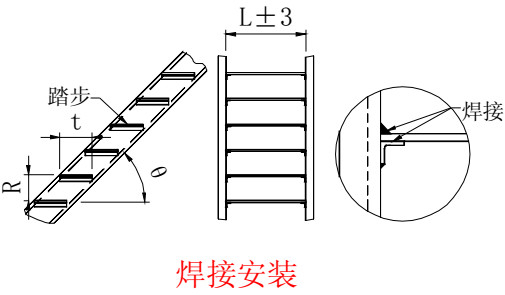

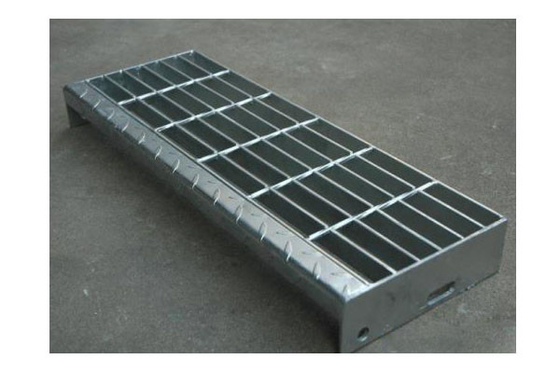

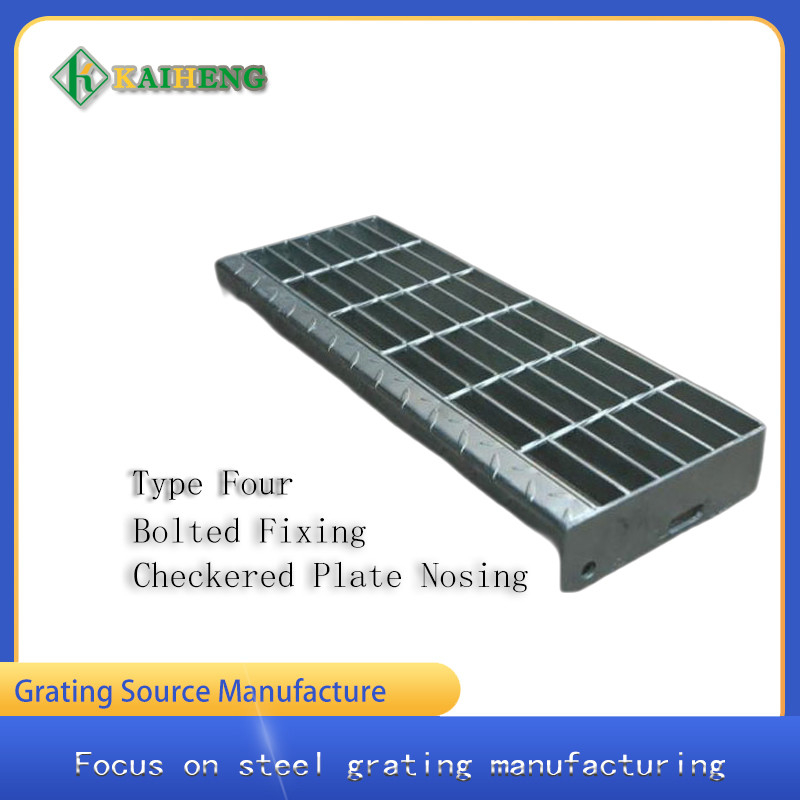

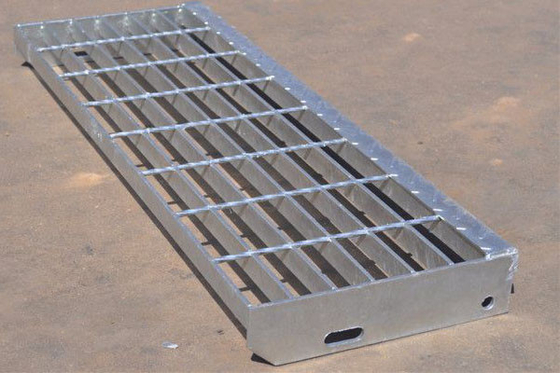

The T4 steel ladder step grating plate with 60mm flat steel spacing adopts 65 * 5 flat steel with 25 * 5, 32 * 5 or 40 * 5 load flat steel and cross bar in the middle, which are welded by manual welding process. The side plate is perforated and used for bolt fixing. In order to increase its corrosion resistance, hot-dip galvanizing surface treatment process will be used for protection and increase its service life.
| product name | T4 stair tread with 40mm bearing bar pitch |
| product color | silver white |
| product material | carbon steel q235 or required |
| product performance | Bearing capacity, corrosion resistance, light structure, |
| surface treatment | hot dip galvanizing |
| bearing bar pitch(mm) | 60 |
| grid width(mm) | 115,215,275 |
| bearing bar(mm*mm) | 25*5,32*5,40*5 |
| grid length(mm) | 550,850,1350 |
| transportation | shipping |
| standard | iso9001:2015 |
| side plate width(mm) | 65*5 |
| cross bar pitch | 10cm |

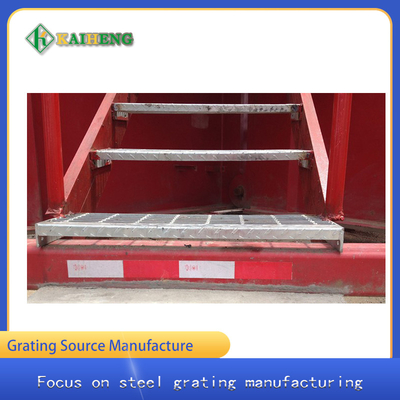

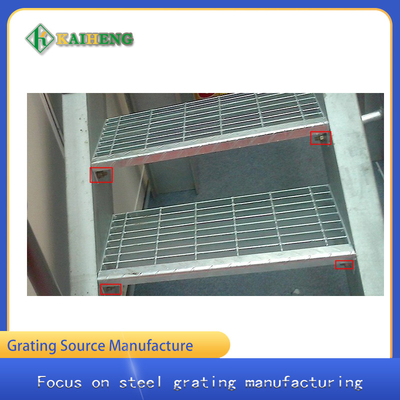

The steel ladder step board of this specification is usually applied to the steel ladder in the middle of the layers of industrial steel structure plants, such as power plant sewage plant, refinery polysilicon project, etc. after application, the steel ladder step board can show the performance of corrosion resistance and oxidation resistance, and its grid appearance can exempt the plant from cleaning and maintenance and save labor. The performance of flat steel is basically good for carrying heavy objects and people.
If the spot specifications cannot meet your needs, we can provide customization of steel ladder treads. T4 is just a different definition of appearance. If you want to customize treads of other specifications with this shape, please send your personalized requirements to the email info@cnkaiheng.com And contact us to communicate details, so as to accurately understand your needs.
