Product Details:
|
| Name: | T2 Stair Tread | Color: | Silver White |
|---|---|---|---|
| Material: | Carbon Steel Q235，zinc | Surface: | Hot Dip Galvanizing |
| Bearing Bar Pitch: | 60mm | Cross Bar Pitch: | 10cm |
| Section Size Of Flat Steel（mm）: | 25*3,25*5,32*5,40*5 | Maximum Length（mm）: | 550,850,1350 |
| Width（mm）: | 185,245,305 | Performance: | Corrosion Resistance And Load Bearing |
| High Light: | Galvanized steel grating treads,steel grating treads,galvanized steel grating stair treads |
||

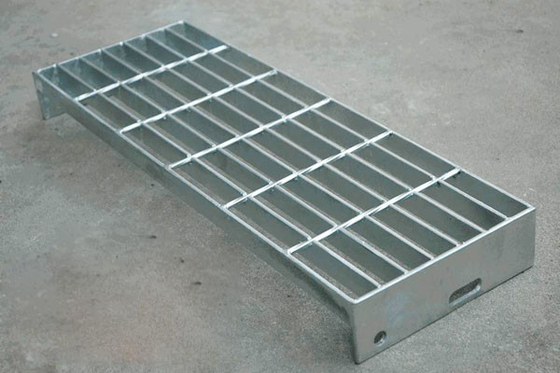

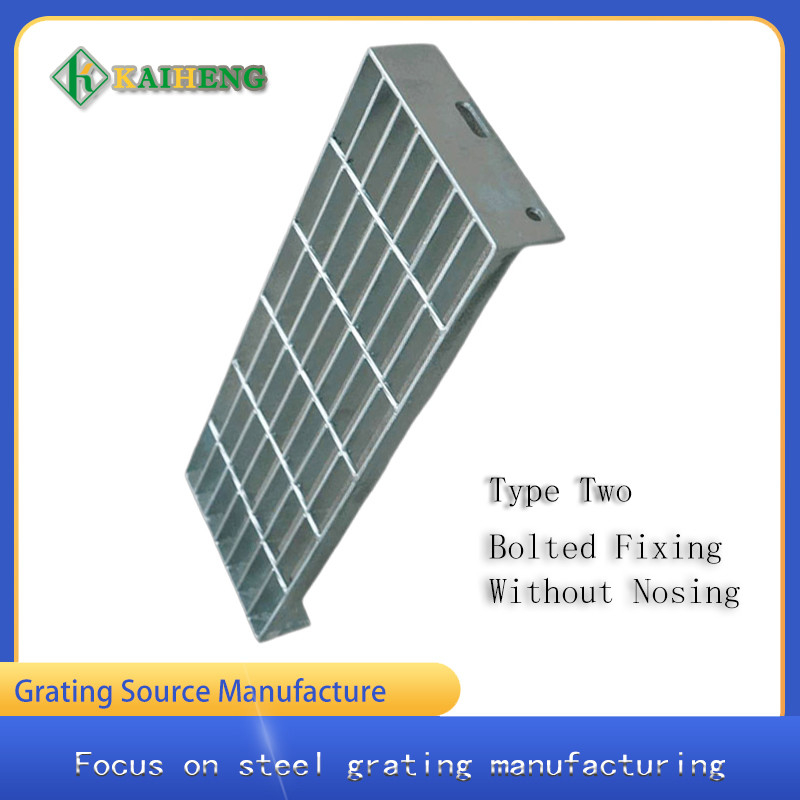

The steel grating with the spacing of 60mm flat steel of T2 model is a step plate fixed with bolts, and there is no front guard plate, because there are design bolt holes. The flat steel specification used for the side plate of this type of step plate is 65mm * 5mm, which is mostly used for the layer by layer connection of the steel structure platform built in the factory, with good anti-skid and bearing capacity.
| Name | T2 flat steel 60mm spacing tread plate |
| Color | silver white |
| Material | carbon steel and zinc |
| Surface treatment | hot dip galvanizing |
| Spacing of flat steel | 60mm |
| Tread width | 185,245,305 |
| Flat steel section | 25*3,25*5,32*5,40*5 |
| Step board length | 550,850,1350 |
| Mode of transportation | Shipping |
| Quality standard | iso9001:2015 |
| Performance | bearing capacity, corrosion resistance, no rain and snow |
Performance of T2 60mm flat steel spacing steel ladder step plate
The tread plate designed by flat steel with a spacing of 60mm has good bearing performance, and the grid plate itself has impact resistance, which is suitable for the vibration scene of the plant. After galvanized surface treatment, its corrosion resistance is very good, which is also the reason why the refinery and chemical plant require the use of hot-dip galvanized grid tread plate, which has a long service life. The steel ladder steps of steel structure are mostly in outdoor scenes. This kind of step board will not accumulate rain and snow and is maintenance free.

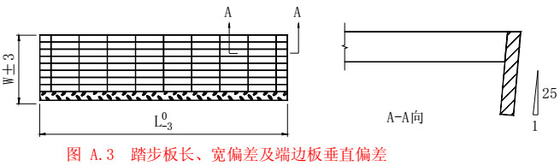

The width error range of tread plate is: - 3mm to 3mm, and the length error range is 0-3mm; The welding joint between the front guard plate and the edging and each loaded flat steel is a fillet weld greater than or equal to 3mm.
The installation method is bolt fixation, which has the advantage of not damaging the zinc layer and convenient installation and disassembly.
If you need to customize the manufacturing of tread plates of other specifications and models, you can send the requirements to us. The customized tread plates can be made of steel grating of any model, and the size can be non-standard.
