Product Details:
|
| Name: | T3 Stair Tread | Color: | Silver White |
|---|---|---|---|
| Material: | Carbon Steel Q235，zinc | Surface: | Hot Dip Galvanizing |
| Bearing Bar Pitch: | 30mm | Width（mm）: | 125,155,185,215,245,275,305 |
| Cross Bar Pitch: | 10cm | Section Size Of Flat Steel（mm）: | 25*3,25*5,32*5,40*5 |
| Maximum Length（mm）: | 550,900,1300,1600 | Performance: | Corrosion Resistance And Load Bearing |
| High Light: | ODM galvanized stair treads,Residential galvanized stair treads,ODM residential metal stair treads |
||

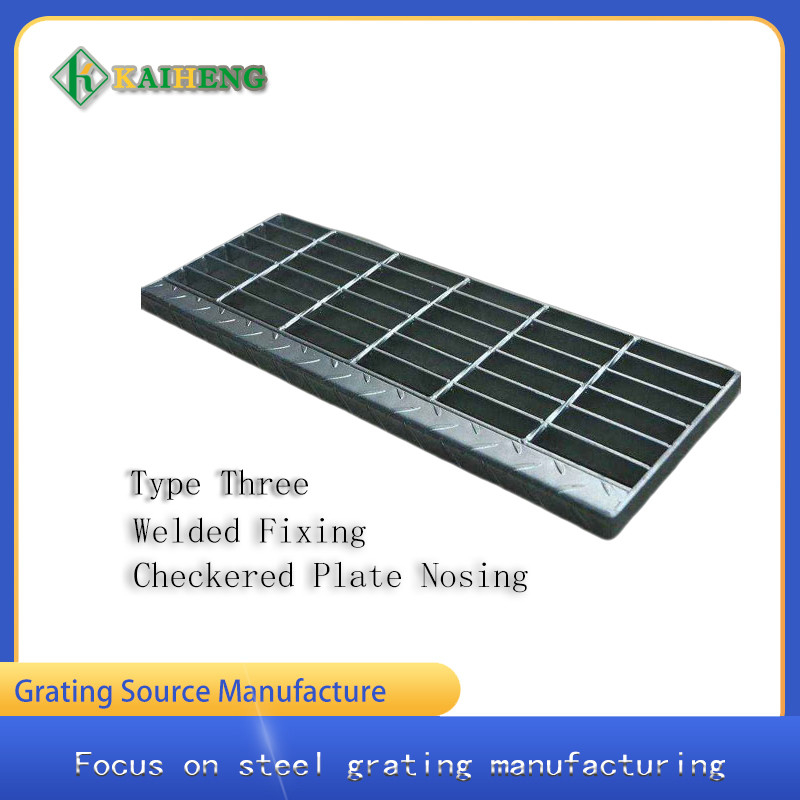

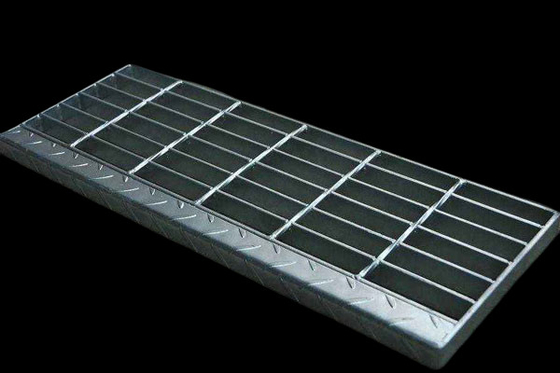

T3 type steel ladder step steel grating is welded by bearing flat steel and cross bar, and then wrapped and welded with pattern front guard plate on one side. This type of steel ladder step steel grating is fixed by welding, which is suitable for permanent non removable steel ladder and is mostly used for equipment surrounding platforms. The welding method is to weld the first flat steel at each corner of the steel grating, with the weld length of no less than 20mm and the height of no less than 3mm.
| Name | T3 type flat steel 30mm spacing specification steel ladder step plate grating |
| Color | silver white |
| Material | carbon steel, zinc |
| Surface | hot dip galvanized |
| Spacing of flat steel (mm) | 30 |
| Tread plate width (mm) | 125,155,185,215,245,275,305 |
| Cross bar spacing (mm) | 10 |
| Flat steel section (mm * mm) | 25 * 3,25 * 5,32 * 5,40 * 5 |
| Maximum length of step (mm) | 550,900,1300,1600 |
| Performance | bearing, anti-skid, anti-corrosion and convenient installation |
| Origin | Anping, Hengshui, Hebei |
| Executive standard: | iso9001:2015 |
| transportation | Shipping |
This kind of step board is the most widely used variety in the industrial field. In the series of steel grating, it has the strongest resistance to surface impact, excellent compression and bending resistance, fixed welding method, convenient installation, hot galvanizing treatment, good corrosion resistance, light structure, ventilation and light transmission, no accumulation of rain and snow, free from maintenance, and can adapt to the outdoor environment.

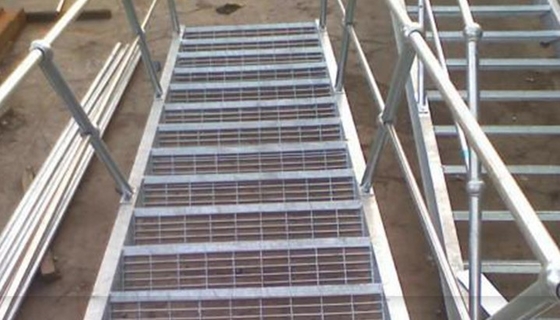

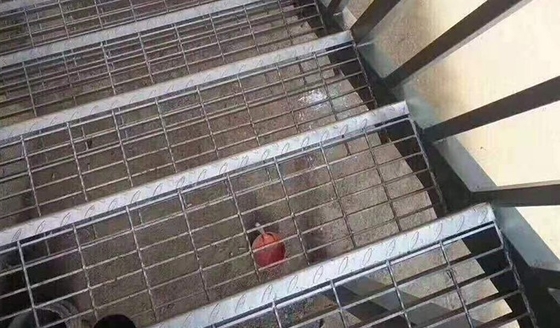

The step grid is mainly used in the steel ladders of steel structure plants in chemical plants, polysilicon projects, petroleum, power plants, sewage plants, etc., to adapt to the harsh outdoor environment of the plant or the scene with vibration and impact.
You need to transmit the design drawings to us. If you have special requirements, please note to us. We will quote for you according to your personalized customization needs and quantity. The payment method is phased payment.
