Product Details:
|
| Name: | T3 Stair Tread | Color: | Silver White |
|---|---|---|---|
| Material: | Carbon Steel Q235，zinc | Surface: | Hot Dip Galvanizing |
| Bearing Bar Pitch: | 60mm | Width（mm）: | 155,215,275 |
| Cross Bar Pitch: | 10cm | Section Size Of Flat Steel（mm）: | 25*5,32*5,40*5 |
| Maximum Length（mm）: | 550,850,1350 | Performance: | Corrosion Resistance And Load Bearing |
| High Light: | T3 Steel Grate Stair Treads,galvanized Steel Grate Stair Treads,galvanized grating steps |
||

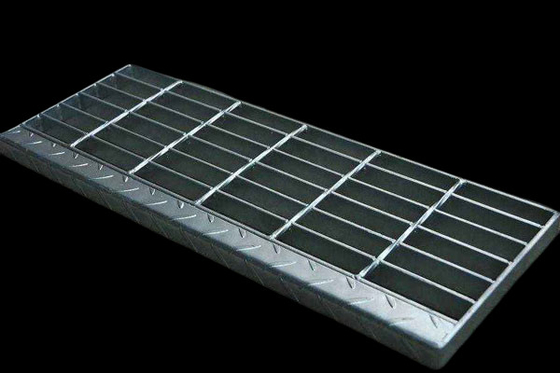

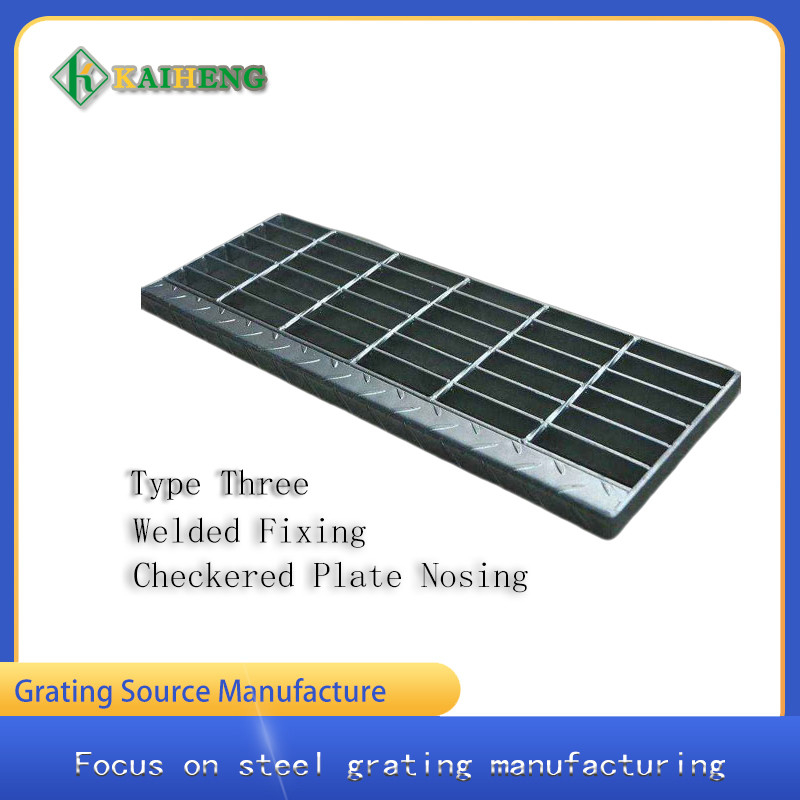

The step grid plate of T3 flat steel ladder with a spacing of 60mm is a step plate of welding fixed installation mode, which is suitable for permanent steel structure projects without disassembly. It adopts horizontal and vertical cross welding of flat steel and cross bar, with outer edge wrapped flat steel, and Huawei front guard plate welded at a section in the width direction. The finished step plate will be hot-dip galvanized to increase its service life. Can it resist corrosion and oxidation, Because of its convenient installation and good load-bearing performance, it is accepted by customers.
| name | T3 flat steel 60mm spacing specification steel ladder step plate grating |
| color | silvery white |
| material | carbon steel Q235 and zinc |
| surface | hot dip galvanized |
| Flat steel spacing (mm) | 60 |
| Pedal width (mm) | 155,215,275 |
| Cross bar spacing (mm) | 10 |
| Flat steel profile (mm * mm) | 25 * 5,32 * 5,40 * 5 |
| Maximum length of step (mm) | 550,850,1350 |
| performance | High bearing, anti-skid, anti-corrosion and convenient installation |
| origin | Anping, China |
| standard | ISO9001 |
| transport | Shipping |
If the flat steel with this spacing has a large grid hole, it is suitable for mining to solve the problem of mineral splashing on the plate surface. In addition, it is some performance characteristics of the conventional steel ladder step plate, such as good bearing performance, ventilation, light transmission and ventilation, corrosion resistance and oxidation resistance, light structure and convenient installation, but it should not be disassembled and fixed for welding. The front guard board can play the role of anti-skid and aesthetic effect. This structure will not accumulate rain and snow outdoors, which is convenient for maintenance and free from cleaning.
if you need order the steel ladder step plate that the bearing bar pitch is 60mm ,you can send your require to the email info@cnkaiheng.com
